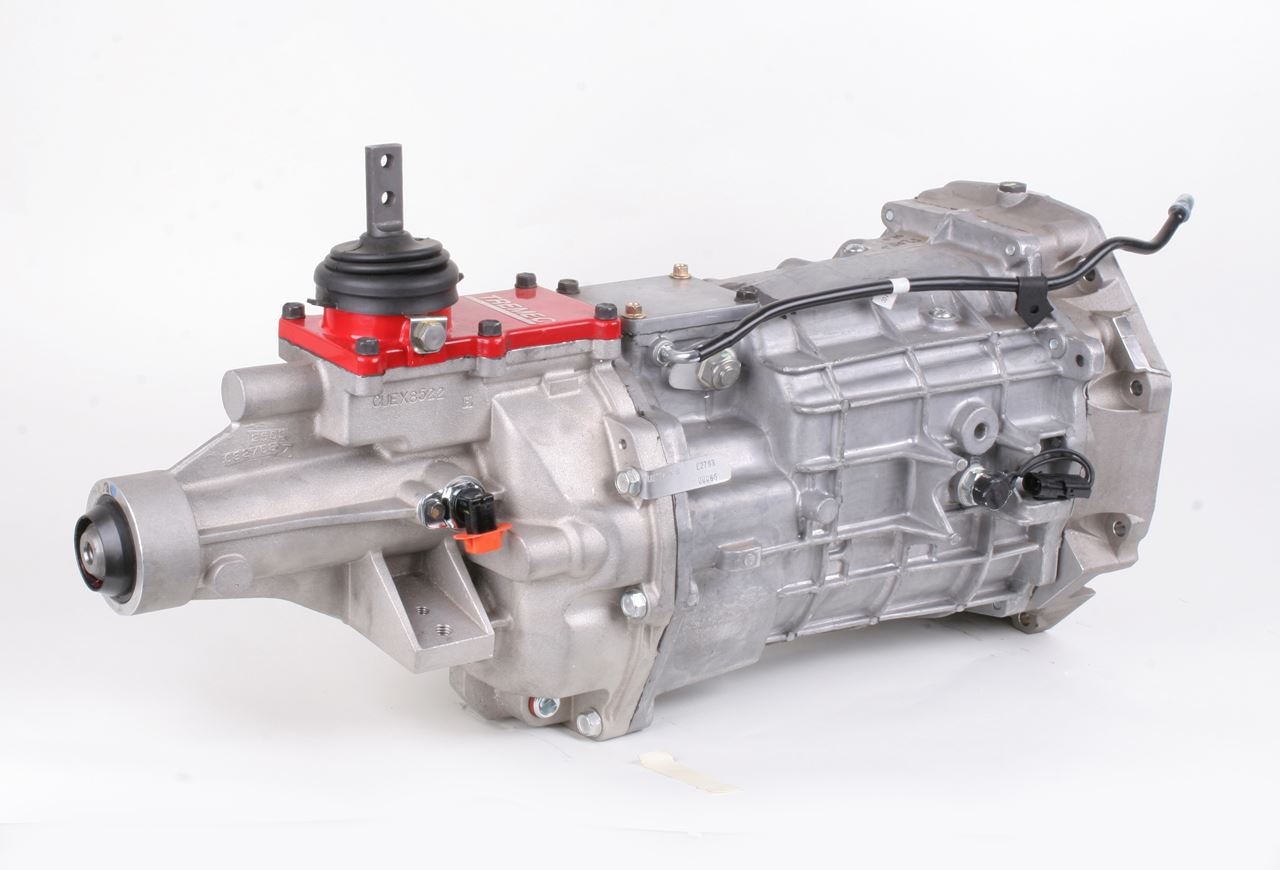

T56 Magnum 6-Speed Transmission – 2.97 / .74 5th, .50 6th

$3,295.00

26 SPLINE INPUT – 2.97 1ST GEAR / .74 5th & .50 6th – GM

Available on backorder

SKU: HMS-TUET11012

Description

The kingpin of TREMEC’s high performance line-up, the T-56 Magnum double-overdrive 6-speed transmission takes the very best from TREMEC’s current OEM technologies and pairs it with the most popular features of the TKO 5-speed.

Able to withstand a massive 700 lb-ft. of torque while providing unbelievably crisp shifts, no other manual transmission on the planet offers as much combined strength, versatility, and general ease-of-use as the T-56 Magnum.

Features
  • Magnum T56, The aftermarket’s premier 6-speed performance manual transmission
  • Gear Ratios: 1st 2.97; 2nd 2.10; 3rd 1.46; 4th 1.00; 5th 0.74; 6th 0.50
  • Torque Capacity – 700 lbs/Ft
  • Input Shaft – 26 Spline
  • Output Shaft – 31 Spline
  • Reasonably light at 135 lbs. dry
  • Incredibly short, extremely low-effort shift throws, with crisp, precise engagement

Gear Ratios: 1st Gear: 2.97, 2nd Gear: 2.10, 3rd Gear: 1.46, 4th Gear: 1.00, 5th Gear: 0.74, 6th Gear: 0.50

Additional information

Weight 147 lbs
Dimensions 39 × 15 × 19 in
Manufacturer

TREMEC

×
