McLeod Steel Flywheels 463456

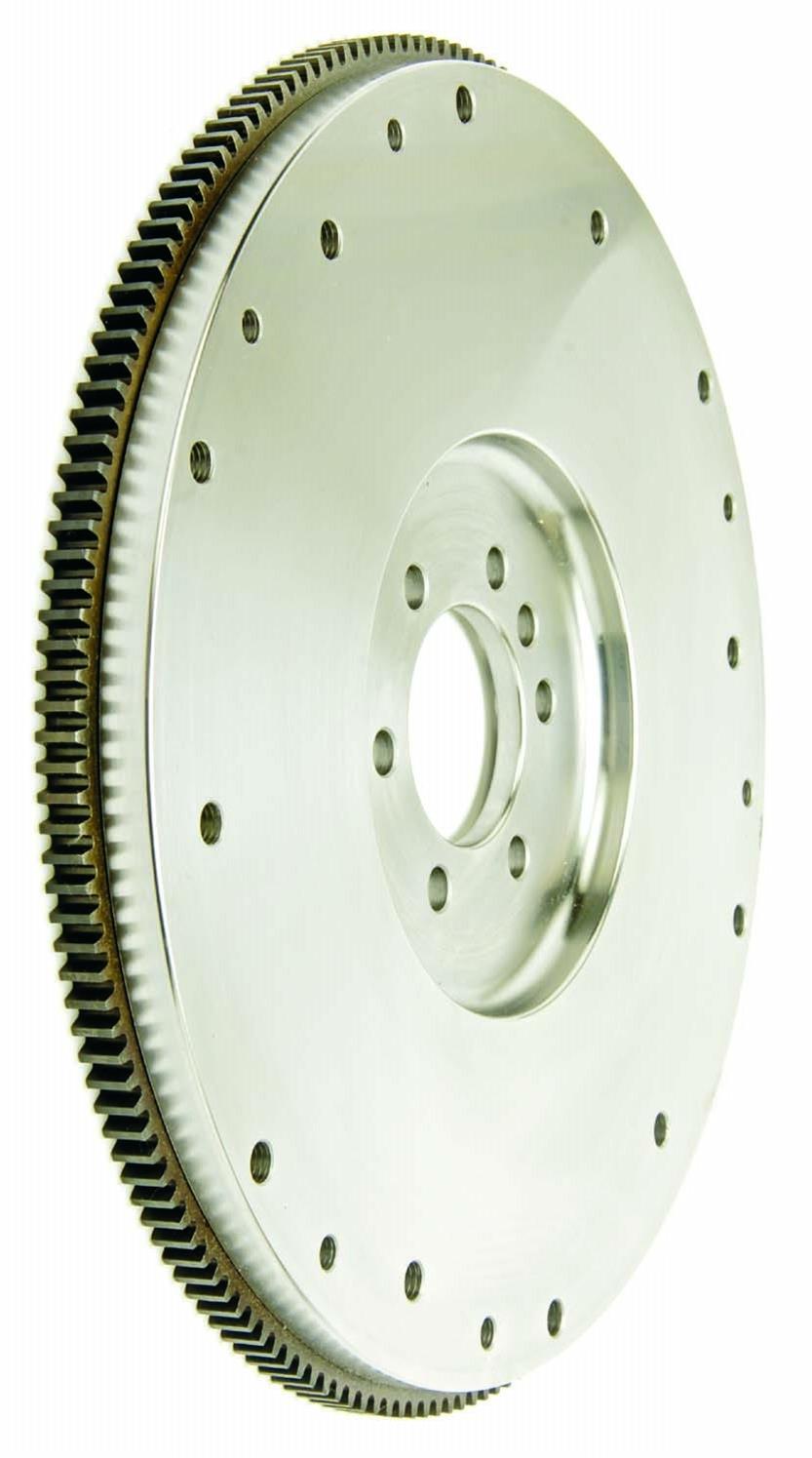

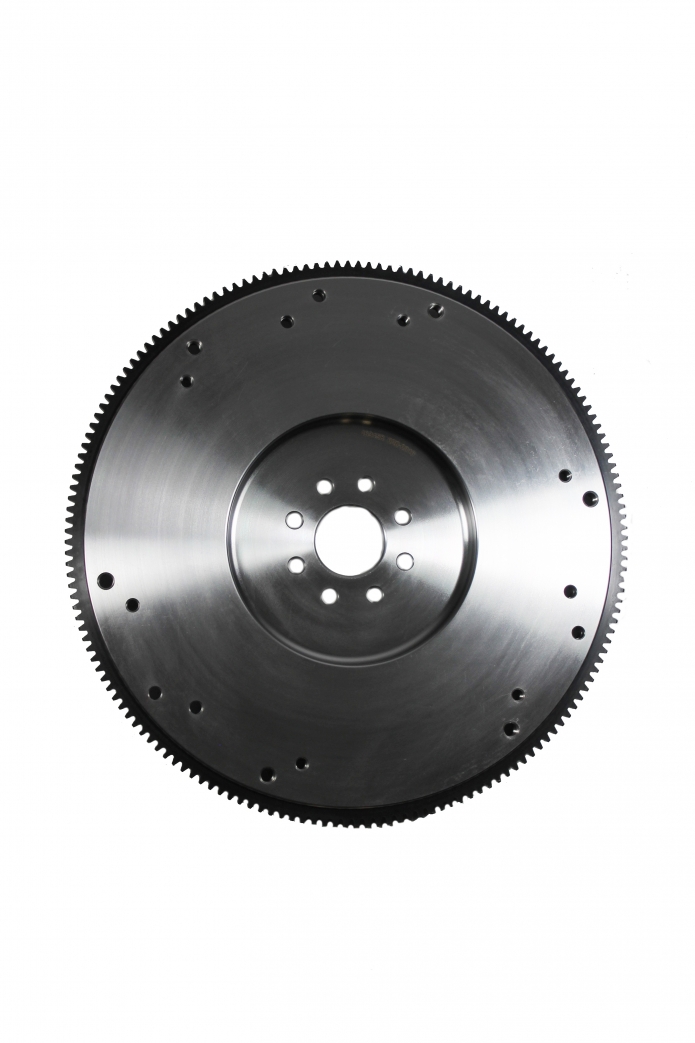

McLeod RXT1200 Steel Flywheel Ford 10.5″ & 11″

In stock (can be backordered)

SKU: HMS-463456



  • Make: Ford
  • Ring Gear: 164 tooth
  • Flywheel Material: Steel
  • Weight: 22 Lbs
  • Clutch Patterns: 10.5In. Mustang Diaphragm 1986-2000 with Dowel Pin Holes
  • Clutch Pattern 2: 2001.5-2004 11In. Diaphragm with Dowl Pin Hole
  • Disc Diameter: 10.5In./11In.
  • Engine: 1991-2010 4.6L 6 Bolt Crank
NOTE: Further questions please call McLeod Tech Line at 714-630-2764.

Application: This unit is intended for street/strip use.

Description: McLeod steel flywheels are perfect for street applications where easy stop light acceleration is desired. Steel flywheels come in various weights and dimensions. For race applications, a heavier steel unit is ideal for helping launch a heavy car with a smaller engine with less torque and horsepower. They are CNC machined from billet alloy steel and have 1045 hardened steel ring gears.

Additional information

Weight 50 lbs
Dimensions 15 × 15 × 5 in
