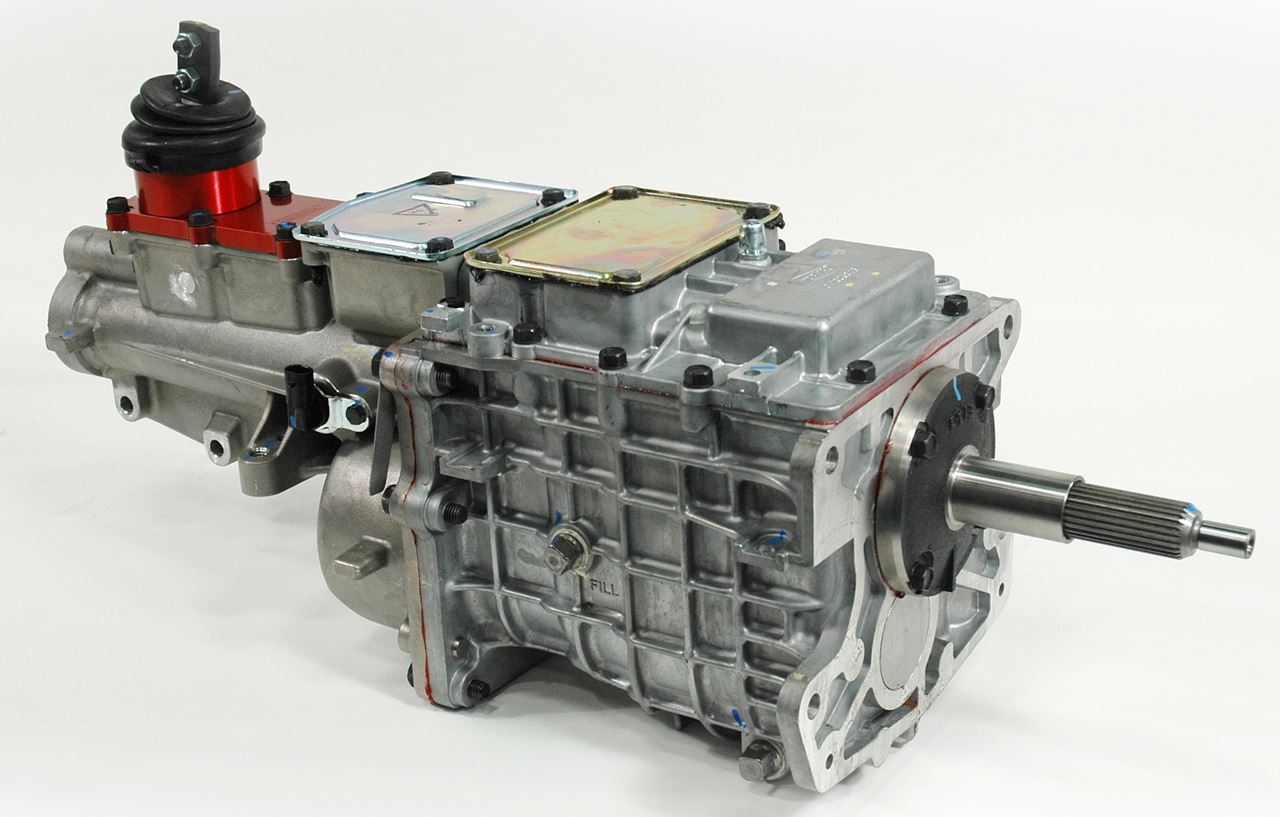

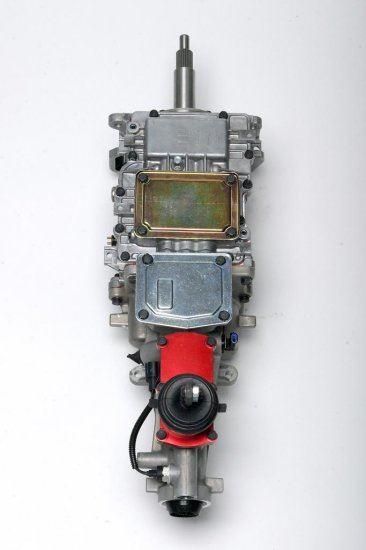

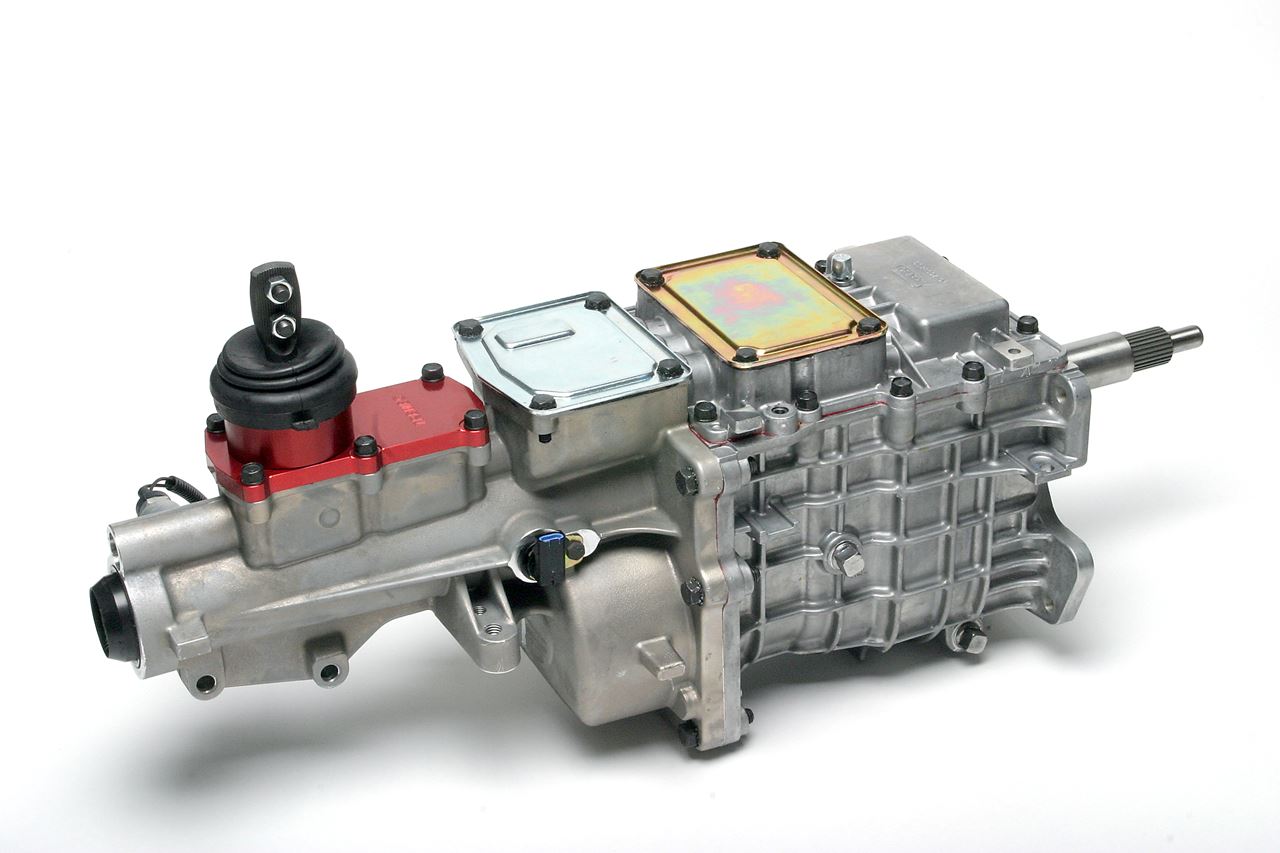

TKO 600 5-Speed Transmission

$2,595.00

26 SPLINE INPUT – 0.82OD – GM

In stock (can be backordered)

SKU: HMS-TCET4618

Description

TREMEC’s TKO series of 5-speed transmissions was first made famous by the 5-liter Mustang movement and has since been fitted into nearly every rear-wheel drive performance application imaginable.

Far and away the most versatile 5-speed on the market, the TKO offers an impressive array of flexibility features – including multiple shifter locations, mounting configurations, gearing options, and speedometer pickups (electric and mechanical).

Serving up 600 lb-ft of torque capacity, along with confidence-inspiring shifts and fuel-saving overdrive, the TKO offers an ideal blend of brute strength and street manners – which may be why it’s the manual transmission behind more boulevard-bruising street machines and sportsman race victories than all of it’s competitors combined.

Features

  • Heavy Duty TKO
  • Gear Ratios: 1st 2.87; 2nd 1.89; 3rd 1.28; 4th 1.00; 5th 0.82
  • Close Ratio 1st Through 4th Gear
  • Improved Shift Forks
  • 4615 Steel Gears for Increased Torque Capacity
  • Torque Capacity – 600 lbs/Ft
  • Input Shaft – 26 Spline
  • Output Shaft – 31 Spline

Gear Ratios: 1st Gear: 2.87, 2nd Gear: 1.89, 3rd Gear: 1.28, 4th Gear: 1.00, 5th Gear: 0.82

Additional information

Weight 121 lbs
Dimensions 35 × 15 × 18 in
Manufacturer

TREMEC
