McLeod Steel Flywheels 460530

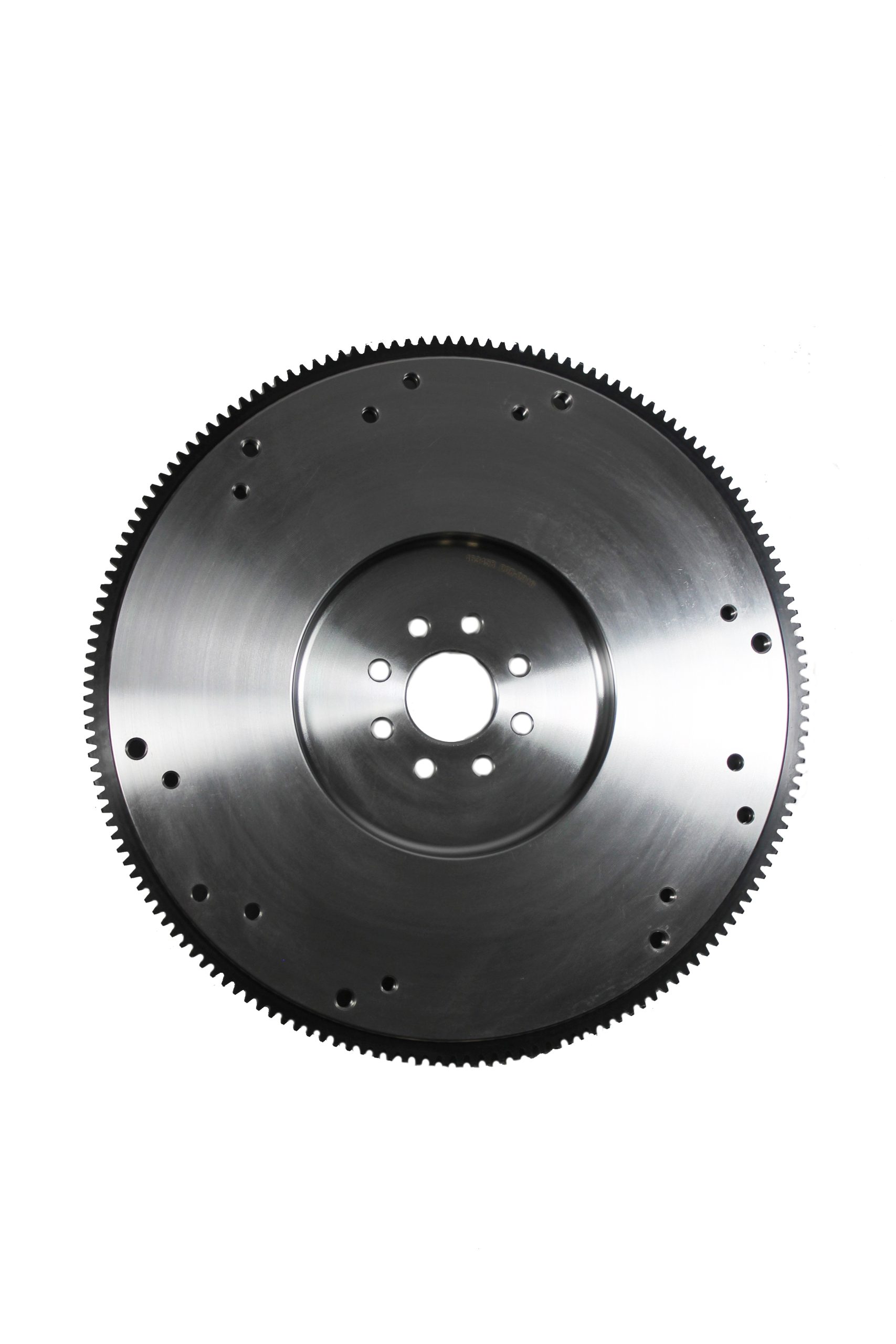

McLeod Racing Flywheel – Steel, 168-Tooth, 30 lb., Internal Engine Balance, Chevy, LS

In stock (can be backordered)

SKU: HMS-460530



  • Make: Chevrolet
  • Ring Gear: 168 tooth
  • Flywheel Material: Steel
  • Weight: 30 Lbs
  • Clutch Pattern 1: 11In. & 12In. B&B & Diaphragm Shouldered Bolt
  • Clutch Pattern 2: 12In. LS1/LS6 Diaphragm, Metric Bolts, With Dowel Pins
  • Disc Diameter: 11In./12In.
  • Engine: 1997-2013 LS1/LS2/LS3/LS6/LS7 6 BOLT Crank
  • Engine Balance: Internal Balance

NOTE: CENTERBORE/CRANK BOSS: Because of standard variances in OEM and Aftermarket manufacturing tolerances, the flywheel to crankshaft boss fit may have variations from slip-fit to slight interference

NOTE 2: Further questions please call McLeod Tech Line at 714-630-2764.

Application: This unit is intended for street/strip use.

Description: McLeod steel flywheels are perfect for street applications where easy stop light acceleration is desired. Steel flywheels come in various weights and dimensions. For race applications, a heavier steel unit is ideal for helping launch a heavy car with a smaller engine with less torque and horsepower. They are CNC machined from billet alloy steel and have 1045 hardened steel ring gears.

Additional information

Weight 50 lbs
Dimensions 15 × 15 × 5 in

McLeod Racing
