05-10 TR-3650 5-Speed Transmission – w/ Adapter Plate – Stage 2

$2,395.00

Factory Replacement Stage 3 Transmission

ALL TR-3650 TRANSMISSIONS REQUIRE A $800.00 CORE CHARGE OR A TR-3650 EXCHANGE UNIT. ALL TR-3650 UNITS ARE CUSTOM BUILT TO ORDER, AND MAY REQUIRE UP TO 14+ WEEKS TURN AROUND TIME.



WE ARE NOT CURRENTLY ACCEPTING ANY REPAIRS / REBUILDS / CUSTOM BUILDS UNTIL FURTHER NOTICE.



Out of stock

Description

Designed and manufactured by Tremec, the TR-3650 is a 5-speed manual transmission that was first introduced in the 2001 Ford Mustang GT & Cobra’s. They were installed halfway through 2001 replacing the T-45. FoMoCo needed a stronger gearbox that could withstand additional torque output, so they turned to Tremec for a redesign.

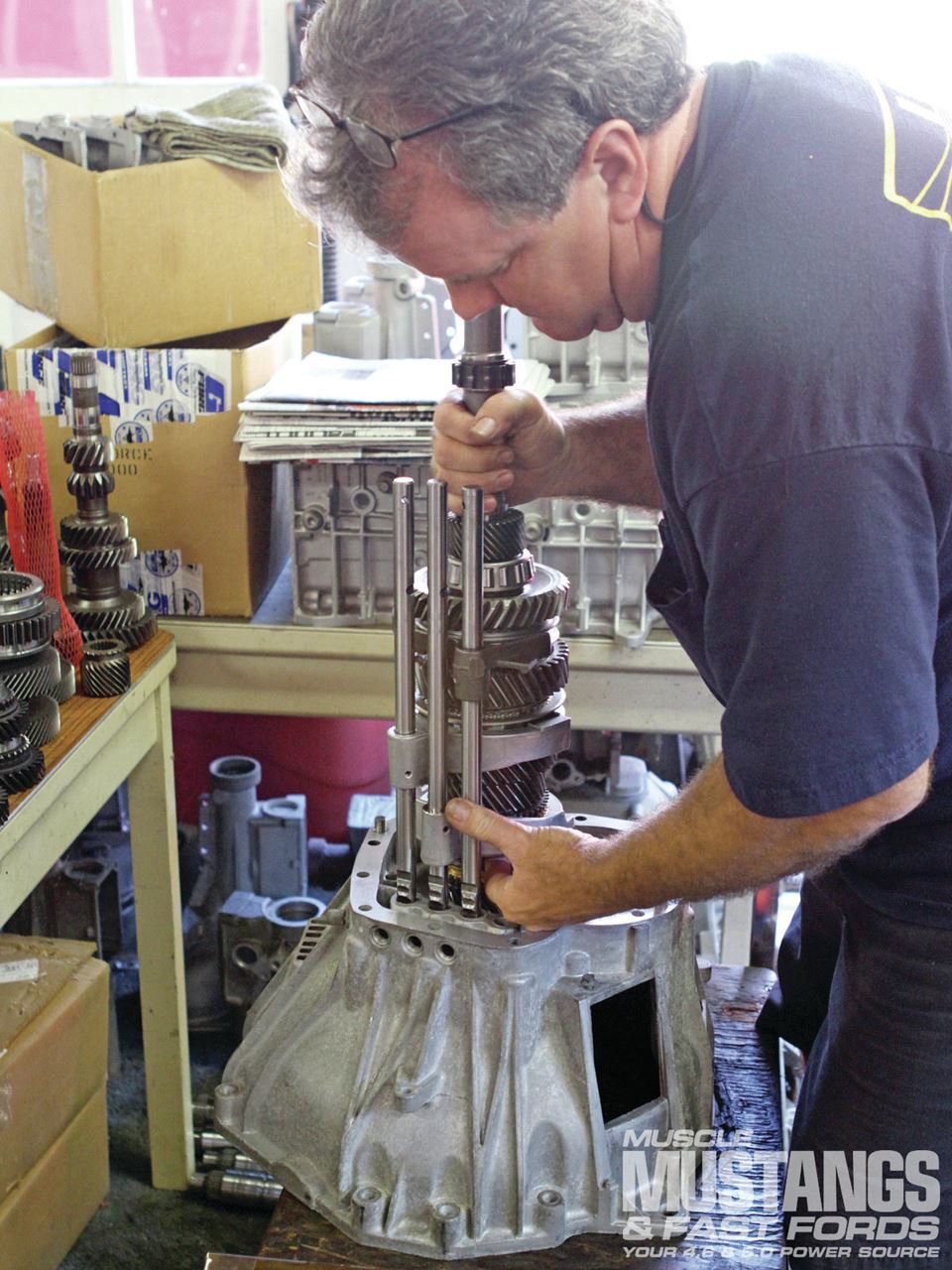

Today, HMS rebuilds & customizes the Tremec TR-3650 and offers various options given the customer’s specific needs. The TR-3650 uses a 3pc 1-2 advanced synchronizer design, and carbon-lined synchro rings for 3-4-5 & reverse which are standard in every build. HMS has enabled the popular Tremec 3650 to be a legitimate option in a world so often dominated by Tremec’s other products like its five-speed heavy-duty transmissions, TKO-500 and TKO-600, and its six-speed transmissions, such as the T56, TR6060 & Magnum units.

Considering the vehicle’s weight, power, traction/tire size, and even driving style. A modified TR-3650 can fit a lot of different combinations, and is an affordable alternative to other Tremec Transmission units.

Standard Features:

  • HMS Modified 05-10 Tremec TR-3650 Transmission
  • Perfect for Coyote Swaps, LS Swaps, or Factory Replacement That Want To Run a Blowproof Style Bellhousing
  • 3PC 1-2 Rings – Advanced Synchronizer Design
  • Carbon-Lined Synchro Rings 3-4-5, & Reverse
  • Horsepower Rating –  650HP or Less
  • Input Shaft – 26 Spline
  • Output Shaft – 31 Spline
  • Choice Of .62 or .68OD
  • Dry Weight – 120 lbs
  • 1 Shifter Location – Body Mount Design
  • Electronic Speedo Only

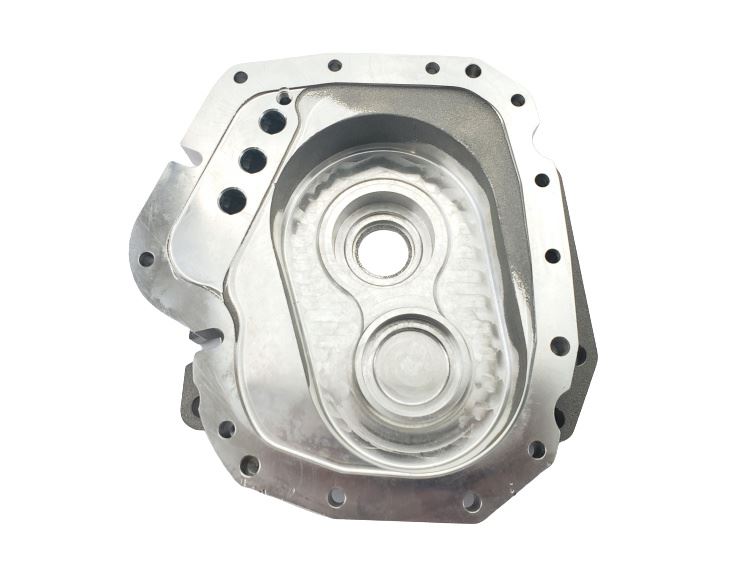

  • HMS Exclusive Billet Adapter Plate – Bolts to Tremec TKO, GM Muncie, Saginaw, or Ford Toploader Style Bellhousings

Gear Ratios: 1st Gear: 3.38, 2nd Gear: 2.0, 3rd Gear: 1.32, 4th Gear: 1.00, 5th Gear: 0.62 or 0.68OD OPTION

NOTE: This HMS TR-3650 will fit S197 or S550 Mustangs equipped with a 4.6L, 5.0L Coyote, or 5.4L modular engine. This HMS TR-3650 bolts to any Tremec TKO, GM Muncie, Saginaw, or Ford Toploader style bellhousings (bellhousing not included). Perfect for customers that want to run a blowproof style bellhousing with the factory transmission. All TR-3650 transmissions require a $800.00 core charge or exchange unit WITHIN 60 DAYS. All TR-3650 units are custom built to order, and may require up to 14+ weeks turn around time. Shifter is not included.

Additional Cost Options:

  • Bronze Shift Fork Pads – $60
  • .81OD 5th Gear Option – $475
  • UPR Products Shifter – $119.95

Additional information

Manufacturer

HMS
